AnyTone AT-778UV Mobile Radio Transceiver Dual Band 25W VHF/UHF Car Radio w/Cable

About this item

1.AT-778UV Mobile Transceiver Radio, Two Mode for different operation requirement Distribute buttons reasonably, Convenient for operation. This mobile radio is especially designs for drivers. ❤❤ONE YEAR U.S Based Warranty, Warehouse (Domestic Return) in CA State--No Further Return Issue.
2. 180 degree rotatable TFT LCD display, Narrow band compliant, Built-in speakers in radio & microphone, Built-in cooling fan.❤❤CHIRP SUPPORT !!! FREE download the programming software on AnyTone Officail Website.

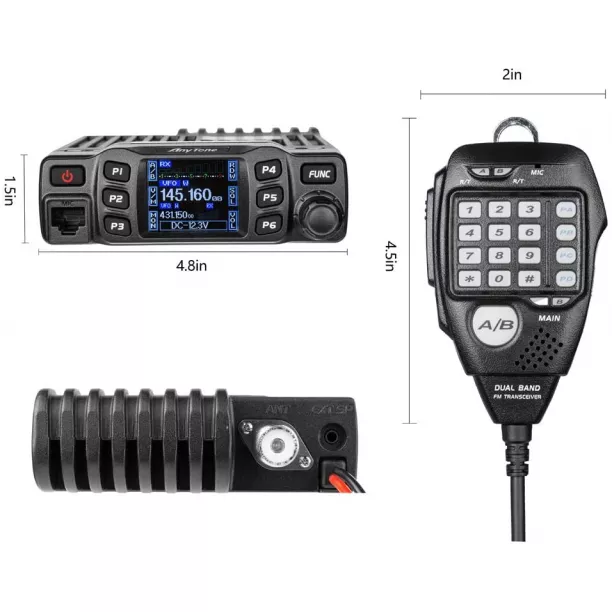

3. Size: 4.9" (W) x 6.4" (D) x 1.5" (H) (124 x 163 x 39 mm); Frequency: VHF /UHF, Output Power 25W/15W/5W, 200 Channels Store, CTCSS/DCS, DTMF, 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
4. Single call, Group call, Selective call and Emergency call are all available, Keypad lockout function, Squelch level setting, LCD brightless control, Voltage level protection, Automatic power function

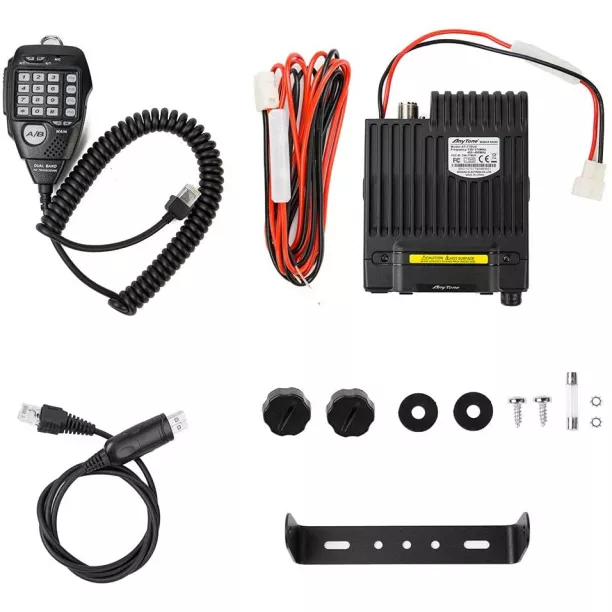

5.Kit Includes: AnyTone AT-778UV Mobile Transceiver, Microphone, Power Cabe with Fuse Holder, Mounting Brackets & Screws, Cable, User’s Manual.

Product Description

AT-778UV mobile transceiver radio

AnyTone AT-778UV Dual Band Transceiver Mobile Radio

AT-778UV Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable.This mobile Transceiver especially designs for drivers and it pursues philosophy of innovation and practicality.

AnyTone AT-778UV walkie talkie VHF/UHF

SPECIFICATIONS

GENERAL

Frequency Range: VHF/UHF

Number of Channels: 200 channels

Operating Voltage: 13.8V DC ±15%

Frequency Stability: ±2.5 ppm

Operating Temperature: -20℃~+60℃

AT-778UV mobile ham radio

RECEIVER

Sensitivity(12dB Sinad): ≤0.25μV; ≤0.35μV

Adjacent Channel Selectivity: ≥60dB

Audio Response: +1~-3dB (0.3~3KHz); +1~-3dB (0.3~2.55KHz)

Hum & Noise: ≥45dB; ≥40dB

Audio Distortion: ≤5%

Audio Power Output: >2W@8

AT-778UV portable mobile car radio

TRANSMITTER

Power Output: 25W/15W/5W (Wide/Narrow Band)

Adjacent Channel Power: ≥70dB ;≥60dB

Hum & Noise: ≥40dB; ≥36dB

Spurious Emission: ≥60dB

Audio Response: +1~-3dB (0.3~3KHz); +1~-3dB (0.3~2.55KHz

Audio Distortion: ≤5%

RADIO BASIC OPERATION

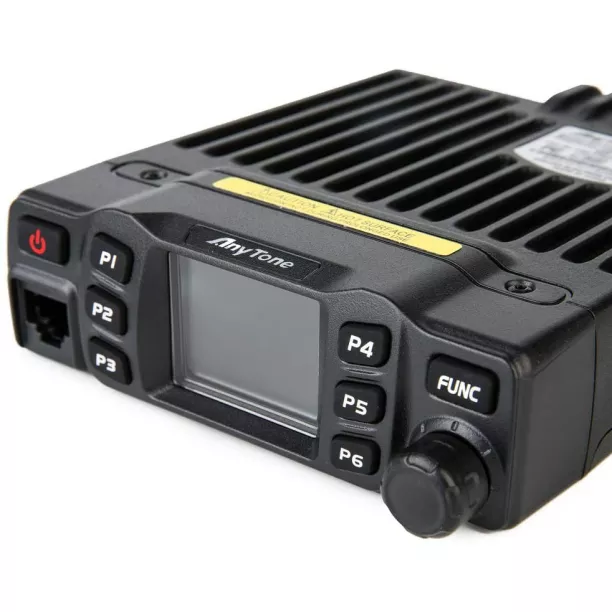

Front Panel

(Number 1) Power On/ Off/ Mute
(Number 2-7) Self Define Key
(Number 8) Function Key/ Function Group Key
(Number 9) Microphone Jack
(Number 10) Channel Switch/ Push Button/ Key Lock
(Number 11) LCD Display

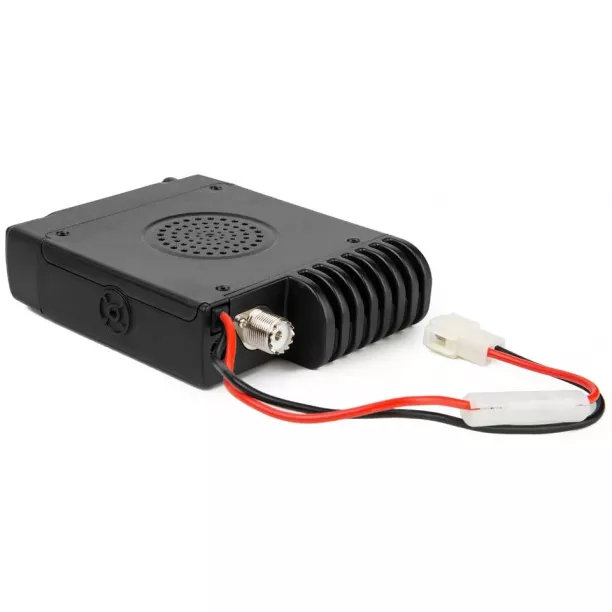

Rear Panel
- (Number 1) Antenna Connector
- (Number 2) Ex-Speaker Jack
- (Number 3) Power Cable
- Microphone Front
  - (Number 1) TX/RX Indicator: Light green while receiving; Light red while transmitting;
  - (Number 2) A/B Band: Choose left band or right band as main band;
  - (Number 3) MIC: Speak here during transmission;
  - (Number 4) Number Key: Input VFO frequency or DTMF dial out etc;
  - (Number 5) Band Indicator: The indicator light on for main band;
  - (Number 6) Speaker: when shut the speaker in the base, you can hear the calling by this speaker;
